Polygons

For original class documentation see Polygon class reference and DPolygon class reference.

Note: you may be looking for something beyond the polygon. When you need boolean operations, the polygon is not the right place to look for. Boolean operations and many higher-level functions are implemented in the Region class which is a collection of polygons.

Polygons are closed contours of points (vertexes) and can contain a number of holes. The outer contour is called the “hull” of the polygon. Holes itself are also closed contours of points.

GDS polygons cannot have holes, so basically these polygons cannot be written to GDS. Instead they are converted to simple polygons first (see below). In GDS also the number of points is usually limited, while in the API it is not. When writing a huge polygon to GDS, the polygon may be split into smaller parts if the vertex limit is exceeded. So eventually it is safe to use polygon objects - the GDS writer will take care of properly handling the special cases.

Warning: avoid generating polygons which are self-intersecting - e.g. the “8” shape. Also avoid overlapping holes or holes which are not entirely inside the hull. Such polygons may be rendered differently on other systems. You can normalize polygons by “merging” them. The Region class implements a merging algorithm for single or multiple polygons.

Having said that, here are the basic features of the Polygon and DPolygon classes:

• The default constructor creates an empty polygon. polygon.empty() tells us if the polygon is empty.
• A polygon without holes can be created from an array of Point or DPoint objects.
• Holes can be inserted into polygons with polygon.insert_hole(..). The argument is an array of points.
• Boxes can be converted to polygons using the constructor with the box argument.
• Ellipses or circle (approximations) can be generated with the ellipse class method.
• The edges (lines connecting two points) can be iterated with each_edge.
• The points of the hull can be iterated with each_point_hull.
• The points of a hole can be iterated with each_point_hole.

The hull and hole contours of the polygons are oriented in a specific way: The hull is oriented clockwise while the holes are oriented counterclockwise. The points passed to the constructor of insert_hole do no need to be compatible with this orientation - the polygon will take care of correcting the orientation if necessary.

When a polygon is constructed, collinear points (points on an edge) or returning edges (zero degree spikes) are removed from hull or hole contours. This can be avoided by passing True to the raw flag which is available for some methods taking point arrays.

The empty polygon a s special case which does not have any points. Non-empty polygons need to have at least three points.

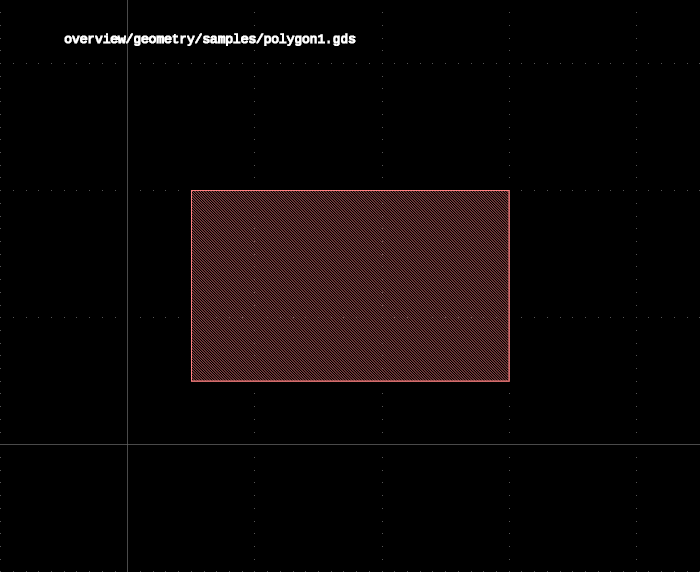

Creating a polygon from a box:

import klayout.db as db

p = db.DPolygon(db.DBox(1, 1, 6, 4))

Gives:

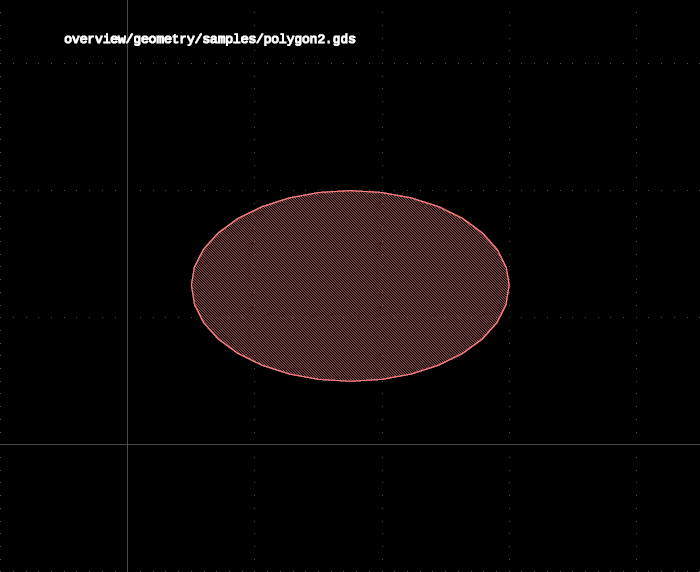

Creating an ellipse (approximated by 32 points):

import klayout.db as db

p = db.DPolygon.ellipse(db.DBox(1, 1, 6, 4), 32)

Gives:

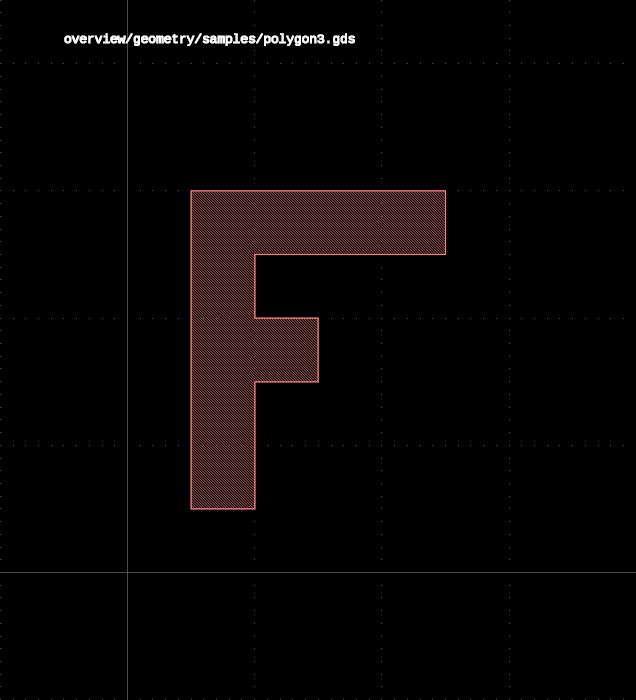

Creating a polygon from a list of points:

import klayout.db as db

points = [
  db.DPoint(1, 1),
  db.DPoint(1, 6),
  db.DPoint(5, 6),
  db.DPoint(5, 5),
  db.DPoint(2, 5),
  db.DPoint(2, 4),
  db.DPoint(3, 4),
  db.DPoint(3, 3),
  db.DPoint(2, 3),
  db.DPoint(2, 1)
]

p = db.DPolygon(points)

Gives:

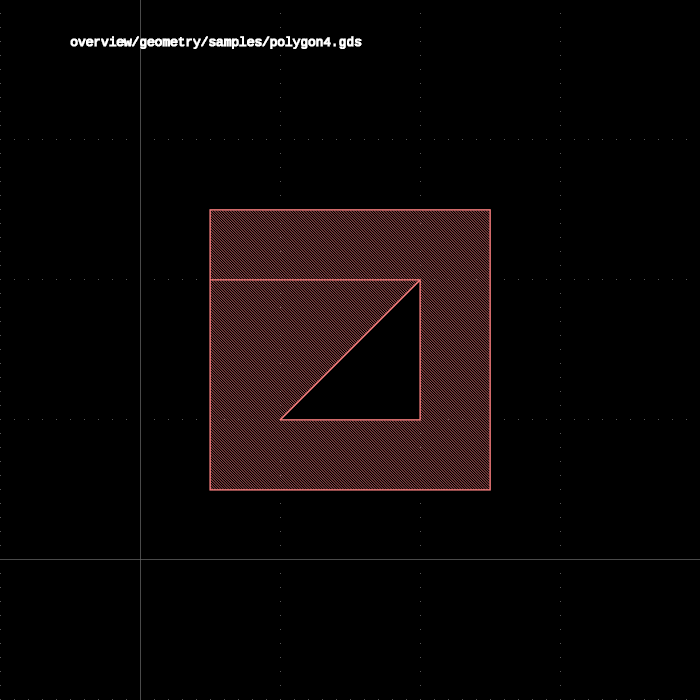

Creating a polygon with a hole:

import klayout.db as db

p = db.DPolygon(db.DBox(1, 1, 5, 5))

hole_points = [
  db.DPoint(2, 2),
  db.DPoint(4, 4),
  db.DPoint(4, 2)
]

p.insert_hole(hole_points)

Note that the cut line has been inserted when the polygon was written to a GDS file. It is not there initially:

Simple Polygons

For original class documentation see SimplePolygon class reference and DSimplePolygon class reference.

In short, simple polygons are polygons without holes.

Simple polygons are the database objects generated when reading GDS files. Simple polygons can be converted easily to generic polygons and back. When a polygon with holes is converted to a simple polygon, the holes are connected to the hull through cut lines:

import klayout.db as db

simple_polygon = db.DSimplePolygon(...)

# conversion of simple polygon to a polygon
polygon = db.DPolygon(simple_polygon)

# conversion of polygon to a simple polygon
simple_polygon = polygon.to_simple_polygon()

In most Python applications, simple polygons will hardly provide any performance or memory benefits, so simple polygons are not further discussed here.
